| betaling Type: | L/C,T/T,D/P,D/A,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery |
| vervoer: | Ocean,Land,Air,Express |
Schaduw:
Model: GC-B01
merk: Guanchen
Shell Materiaal: Aluminium
Externe Interface: USB
Interne Interface: SATA
Plaats Van Herkomst: China

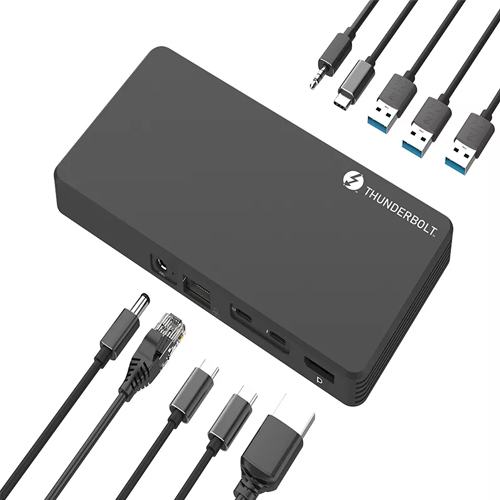

Naam van product: 8K 9-in-1 Thunderbolt 3 Dock Docking Station
Color: Silver, Black, Dark Sky Grey
Size: 103.5*41*13.9MM
Main Control Solution: intel
Transfer Rate: PCIE*4 40Gbps (2.5G file read in 1 second / Samsung 970Evo test)
Supported Capacity: up to 4TB (only PCIE Nvme M.2 protocol SSDs are supported)
Support System: windows/Mac (Only support computers with Thunderbolt 3 mark and use cables with Thunderbolt 3 mark) Product
Output Interface: Thunderbolt3
Logo: Customized
Inpakken: Retail box
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | winkelbox |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Model: GC-B01

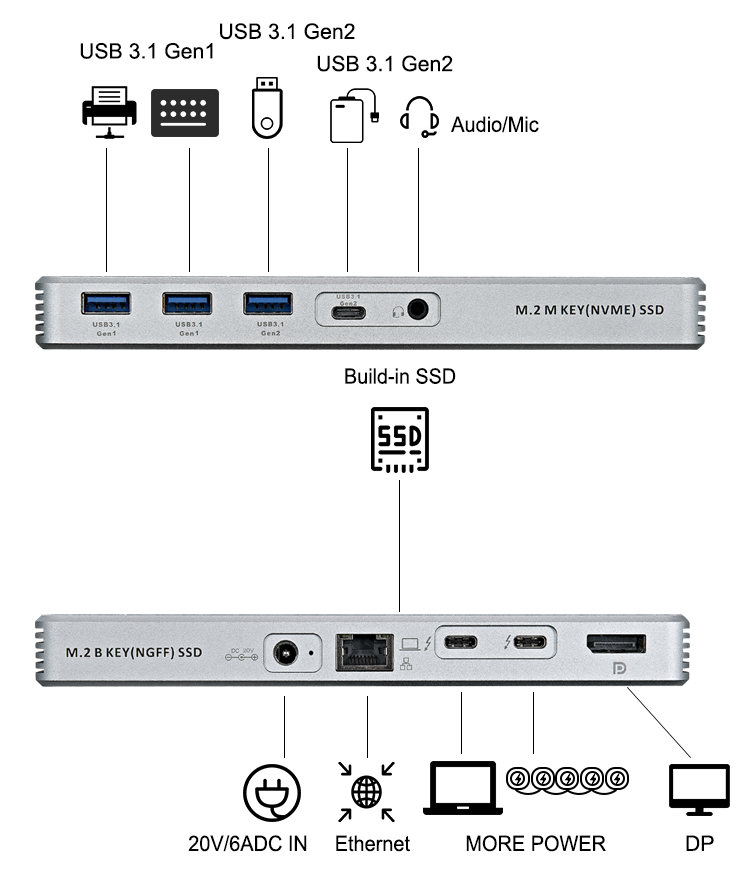

Koppel
| A. | Thunderbolt 3 40Gbps x 2 |
| B. | Display Port 1.4 x 1 |
| C. |
USB3.1 Gen 2 10Gbps Type A x 1 |
| D. | USB3.1 Gen 1 5Gbps Type A x 2 |
| E. | USB3.1 Gen 2 10Gbps Type C x 1 |
| F. | 10/100/1000M Ethernet x 1 |
| G. | Headset/MIC Combo Jack x 1 |
| H. |
20V/6A DC IN x 1 |
Functies
A. Intel Titan Ridge Universal DockSupport zowel Thunderbolt -host als MFDP -host -pc
of notebook. (Intel Alpine Ridge is een oude versie, alleen ondersteunend Thunderbolt3 -host -pc
of notebook)

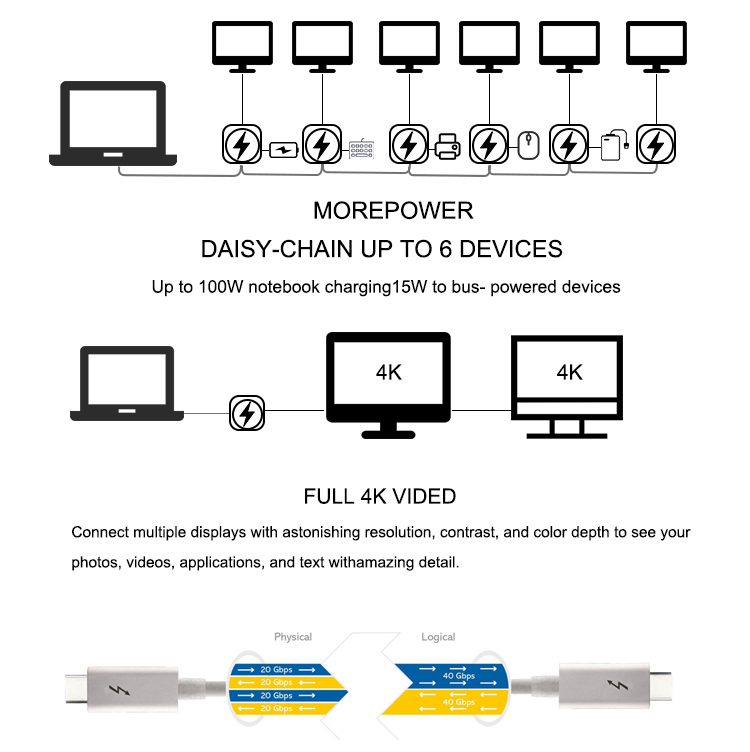

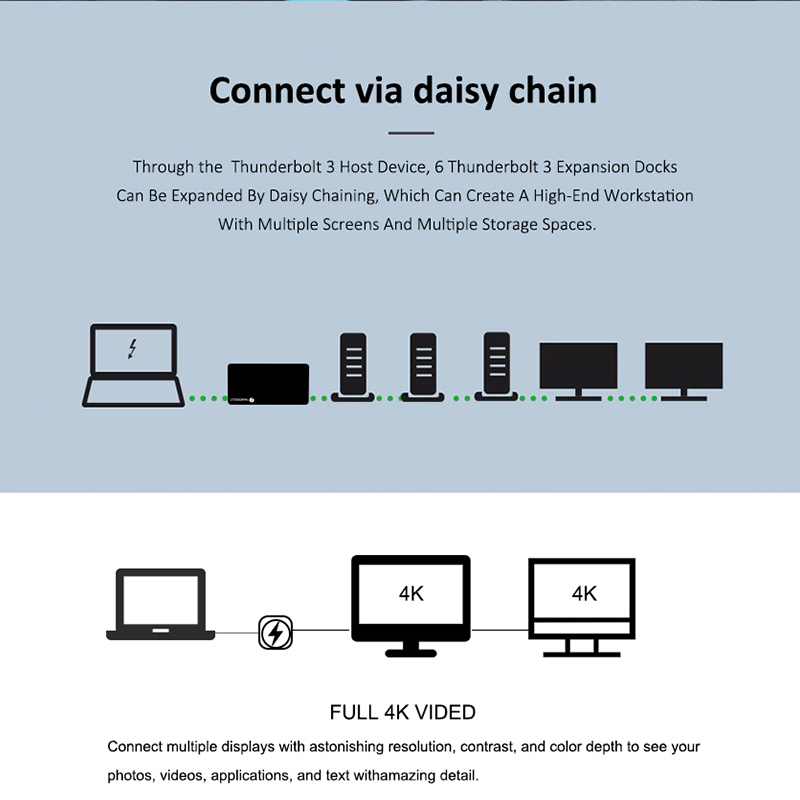

B. Ondersteunt 2x Thunderbolt3 40 Gbps en Thunderbolt3 Daisy Chain.
C. ondersteunt single 8K60Hz (7680x4320), 5K60Hz (5120x2880) UHD of Dual
4K 60Hz display -uitgang.
D. Thunderbolt -poort een ondersteuning PD 60W -oplaad (5V/9V/15V/20V 3A).
E. Thunderbolt -poort B Ondersteuning PD 15W -lading (5V3A); Ondersteuning van 40 Gbps/s High Speed Data Transmission.
F. USB3.1 Gen 2 Type A ondersteunt 1000 MB/s en 5V1.5A.
G. USB3.1 Gen 1 Type A ondersteunt 500 MB/s en 5V1.5A.
H. USB3.1 Gen 2 Type C ondersteunt 1000 MB/s en 5V3A.
I. Ondersteunende ingebouwde M.2 B Key (NGFF) -protocol met maximale 2T SSD Hard Disk 6Gbps/s
J. Ondersteunende ingebouwde M.2 M Key (NVME) -protocol met maximale 2T SSD harde schijf 10 Gbps/s
