| betaling Type: | L/C,T/T,D/P,D/A,Paypal |
| Incoterm: | FOB,DDU,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP |
| vervoer: | Ocean,Land,Air,Express |
Schaduw:
merk: Guanchen
Origin: Gua
certificaat: CE/FCC/ROHS
Certificatie: FCC, Sgs, ce, RoHS
Product Status: Voorraad
Shell Materiaal: Aluminium
Externe Interface: USB
Plaats Van Herkomst: China
Naam van product: Mobile Solid State Drive
Material: Aluminum Alloy
Color: Silver Grey
Logo: Customized
Transmission Speed: USB3.1 10Gbps
Scheme: ASM225
Capacity: 2TB MAX
Supported System: Windows /Mac
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | Neutrale verpakking |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
Type-C-connectoren die zijn beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-Alt-notebook via de HDMI-interface-uitvoer Computer Display Inhoud, Maximale resolutie ondersteund: 3840*2160/30Hz, 4K, neerwaartse compatibele resolutie ; U kunt uw laptop of mobiele telefoon opladen per PD -poort
En realiseer ook de laptop met USB Type-C-poort naar USB3.0A*1 USB2.0A*1Connecting.SSD-behuizing
HDD -behuizingDocking station

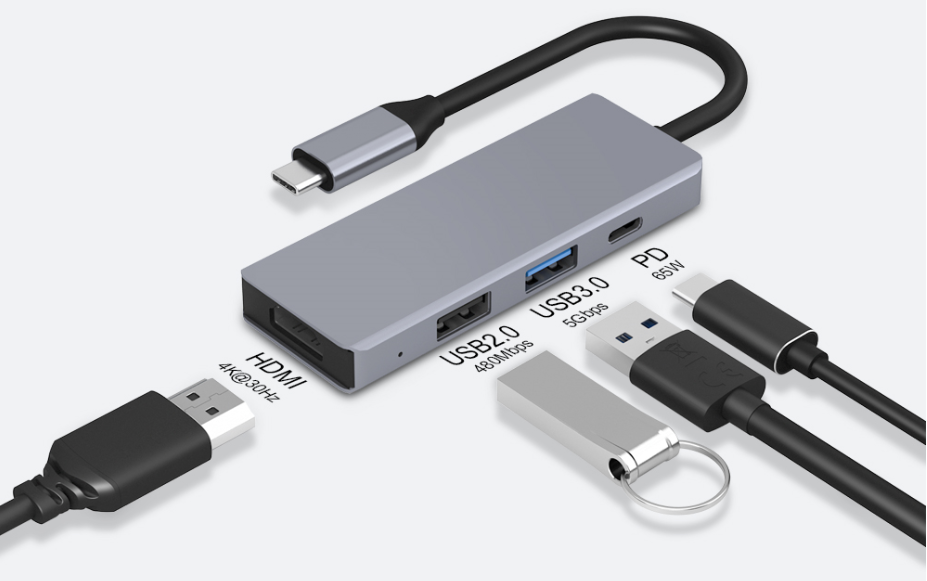

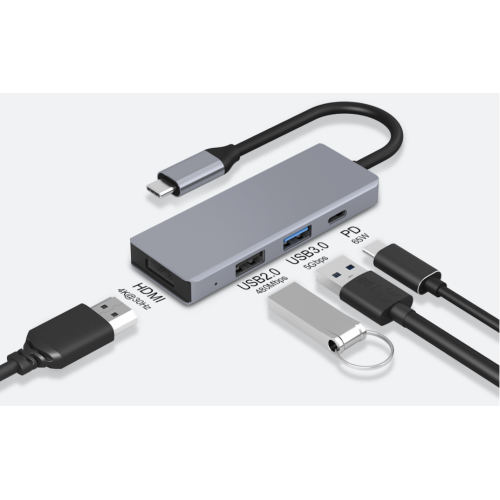

| Product Description | This is a USB C docking station, support USB C to HDMI, support USB3.0A,USB2.0A devices connected at the same time; At the same time, the mobile phone can be charged through an external Type-C port charger to power the mobile hard disk |
| USB-C uplink port x1 | Used to connect with computer,USB3.0 male plug,Cable length is 130mm |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/3.25A max | |
| USB3.0-A download portx1 | Used to extend the connection of USB devices, such as U disk/mouse/keyboard/mobile hard disk, etc |
| Support USB3.0 and downward compatible with USB2.0/1.1, the highest transmission rate of 5Gbps | |
| Output power :5V/900mA 5V/2AMAX, (Type C interface 5V2A power supply) | |
| USB2.0-A download portx1 | Used to extend the connection of USB devices, such as U disk/mouse/keyboard/mobile hard disk, etc |
| Support USB2.0/1.1 maximum transmission rate 480BPS output power :5V/ 900mA,5V/2AMAX, (Type C interface 5V2A power supply) | |
| HDMIx1 | For connecting the display by the DP cable , output the display content of the computer |
| Support for Reproduction and Extended Display Features | |
| Maximum support resolution 3840*2160/30HZ, 4K, downward compatible resolution | |
| Downlink USB C PD interface x 1 | For power supply of products and mobile phone charging mobile hard disk, input power 20V/3.25A . |
| LED indicator light x 1 | Green, The corresponding indicator light is always on after the host computer does not reach the USB device |
2. Interface -specificaties:
Uplink USB-C 3.0-plug x 1
Downlink -interface:
HDMI -poort x 1
USB - C PD -poort x 1
USB-A 3.0 X 1
USB-A 2.0 x 1
Ondersteunende overeenkomst : USB Type-C, USB PD3.0, HDMI2.0
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W ： Uitgang: 20V/3.25A, 15V/3A, 12V/2A, 5V/2A
|
Complete machine |
Overall Product Size |
84.8*31.6*10mm |
|
Weight |
/ |
|
|
Power consumption |
1.1W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Wroking：≤50C |
M EET De CCC/FCC/CE/CB Veiligheidstest Standaard over USB C Docking Station
