| betaling Type: | T/T,L/C,D/P,D/A,Paypal |
| Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
| vervoer: | Ocean,Land,Express,Air |
Schaduw:
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
TYPE-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-Alt-notebook via de HDMI-interface-uitvoer Computer Display Inhoud, Maximale resolutie ondersteund: 3840*2160/60Hz, 4K, neerwaartse compatibele resolutie ; U kunt uw laptop of mobiele telefoon opladen per PD -poort
En realiseer ook de laptop met USB Type-C-poort naar USB3.0A*1 USB2.0A*1 en SD/TF-kaartlezer Connecting. Thunderbolt Docking Station
USB -hubs

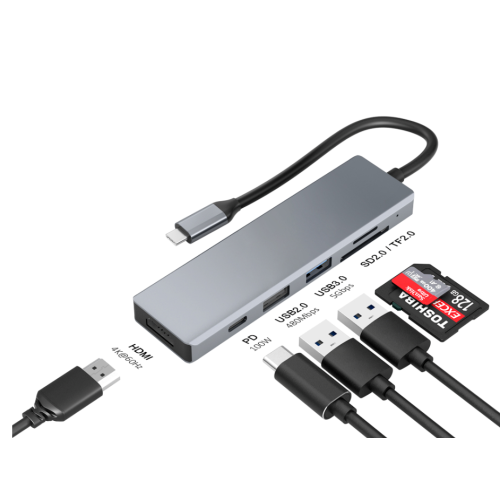

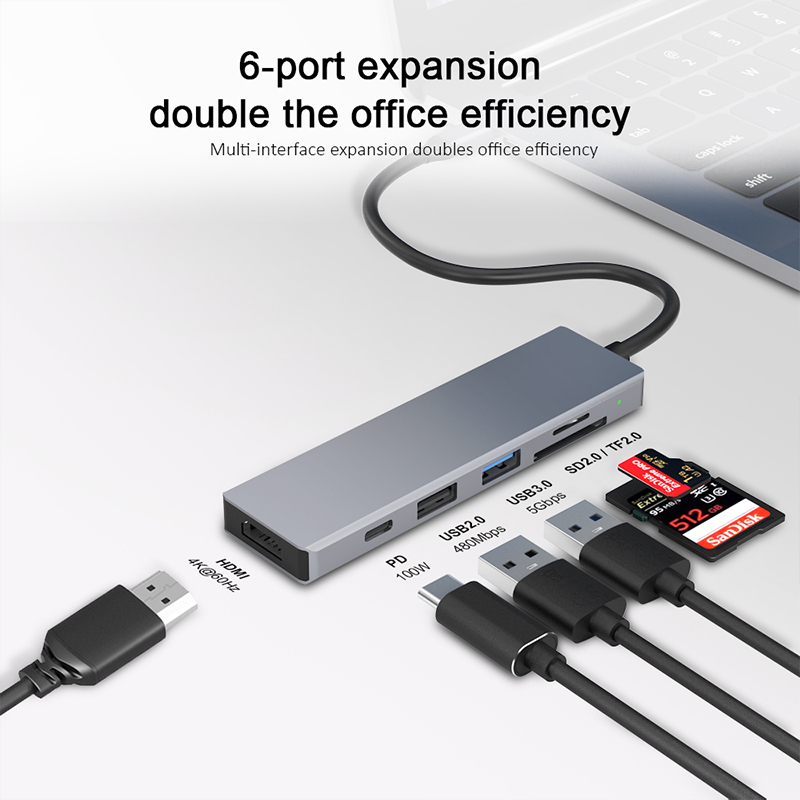

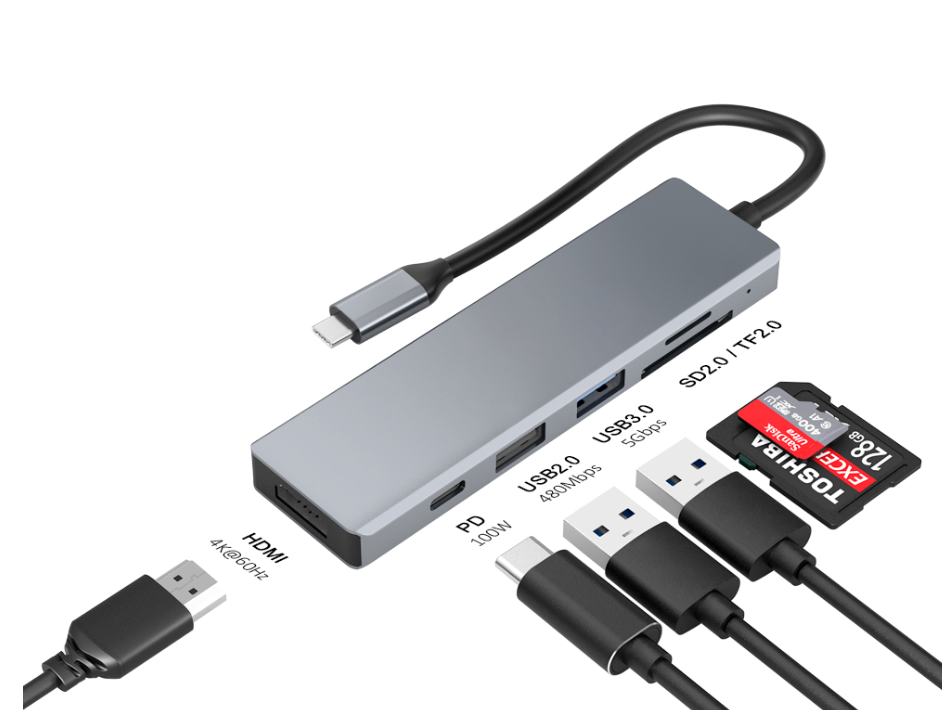

| Product Description | This is a USB C docking station, support USB C to HDMI, support USB3.0A,USB2.0A devices connected at the same time,support SD/TF Reader function; At the same time, the mobile phone can be charged through an external Type-C port charger to power the mobile hard disk |
| USB-C uplink port x1 | Used to connect with computer,USB3.0 male plug,Cable length is 161mm |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax; When PD charging，output power is 20V/3.25A (Max5A) | |
| USB3.0-A download portx1 | Used to extend the connection of USB devices, such as U disk/mouse/keyboard/mobile hard disk, etc |
| Support USB3.0 and downward compatible with USB2.0/1.1, the highest transmission rate of 5Gbps | |
| Output power :5V/900mA 5V/1.5A( Type C interface PD 20V power supply) | |
| USB2.0-A download portx1 | Used to extend the connection of USB devices, such as U disk/mouse/keyboard/mobile hard disk, etc |
| Support USB2.0/1.1 maximum transmission rate 480BPS output power :5V/ 900mA, 5V/1.5A Max( Type C interface PD 20V power supply) | |
| HDMIx1 | For connecting the display by the DP cable , output the display content of the computer |
| Support for Reproduction and Extended Display Features | |
| Maximum support resolution 3840*2160/60HZ, 4K, downward compatible resolution | |
| TF Reader x 1 | Used for external TF memory cards. USB 2.0 card reader,support SD2.0 |
| SD Reader x 1 | Used for external SD memory cards, USB2.0 reader,support SD2.0 standard ( SD/TF card can use at the same time) |
| Downlink USB C PD interface x 1 | Support 20 V/3.25A (65W) input power supply and charging host computer |
| LED indicator light x 1 | Green light Power on |
2. Interface -specificaties: Docking Station
Uplink USB-C 3.0-plug x 1
Downlink -interface:
USB-A 3.0 X 1
USB-A 2.0 x 1
TF -lezer × 1
SD -lezer × 1
HDMI -poort x 1
USB - C PD -poort X 1
Ondersteunende overeenkomst: USB Type-C, USB PD3.0, HDMI2.0
3. Power -adapterondersteuning
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W ： Uitgang: 20V/3.25A, 15V/3A, 12V/2A, 5V/2A
100W: Uitgang ： 20V/5A
4. Productspecificatie
| Complete machine | Overall Product Size | 110*31.6*10mm |
| Weight | / | |
| Power consumption | 1.1W | |
| Working temperature | 0°C~ +40°C， | |
| Surface temperature | Wroking：≤50C |
