| betaling Type: | L/C,T/T,D/P,D/A,Paypal |
| Incoterm: | FOB,DDU,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP |
| vervoer: | Ocean,Land,Air,Express |
Schaduw:
merk: Guanchen
Certificatie: FCC, Sgs, ce, RoHS
Product Status: Voorraad
Shell Materiaal: Aluminium
Externe Interface: USB
Plaats Van Herkomst: China
Naam van product: Mobile Solid State Drive
Material: Aluminum Alloy
Color: Silver Grey
Logo: Customized
Transmission Speed: USB3.1 10Gbps
Scheme: ASM225
Capacity: 2TB MAX
Supported System: Windows /Mac
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | Neutrale verpakking |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
De USB TYP-C-connector in deze technische specificatie kan de inhoud van het computerweergave uitvoeren via de HDMI-interface op het notitieboekje met de Type-C-interface en kan het notebook of de mobiele telefoon opladen met de Type-C via de Type-C-interface. Tegelijkertijd kan de notebook met Type-C-interface veranderen in USB3.0A*1 +USB2.0*2 +SD/TF-kaartlezer*1, of 100m RJ45, ook. Thunderbolt Docking Station
USB -hubs

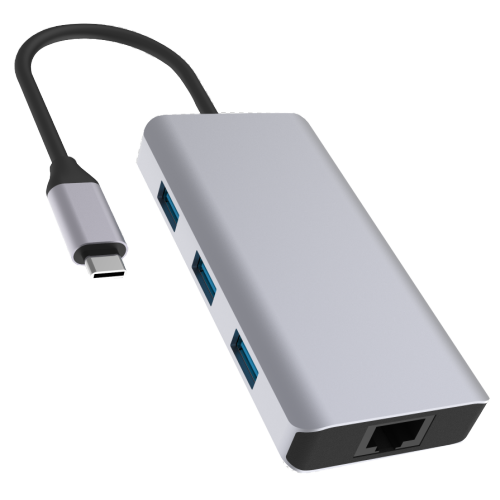

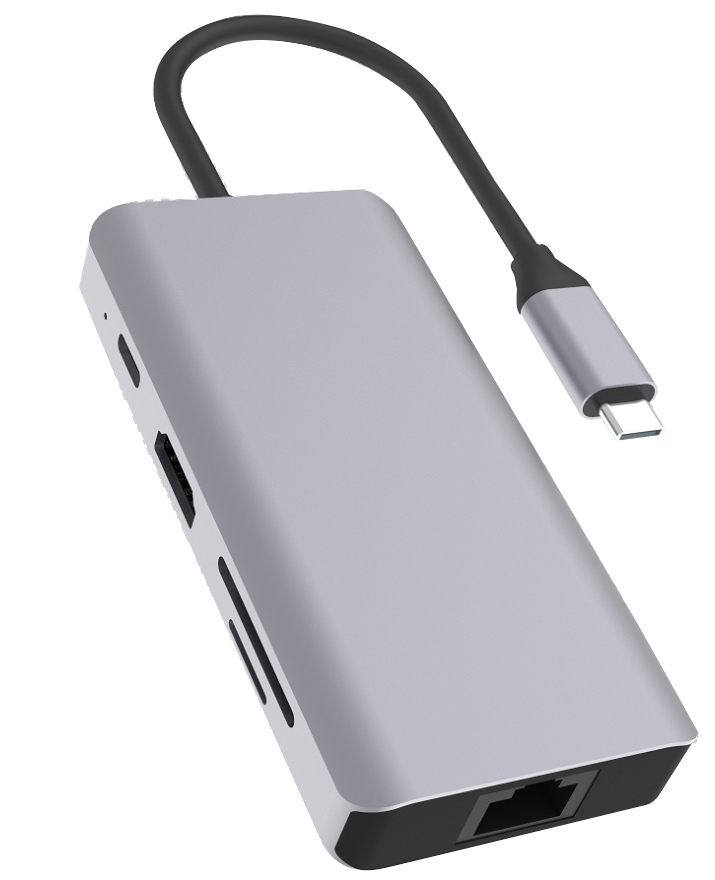

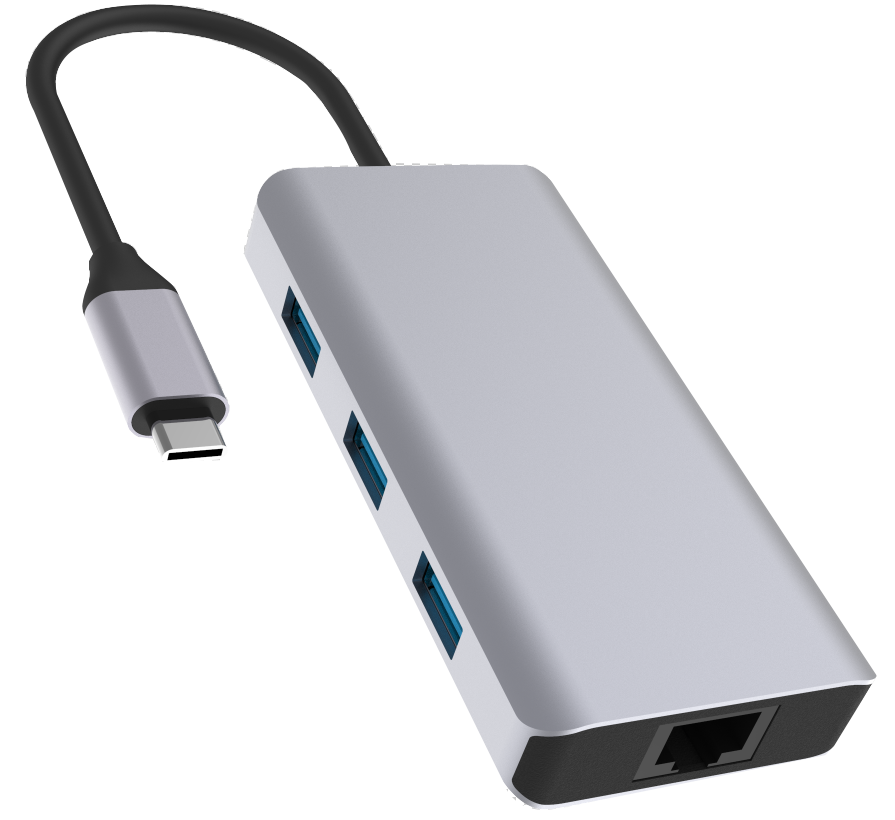

| Product Description | The USB C Docking station, support USB C to HDMI, support USB3.0A*2+USB2.0*1 USB device connect together at the same time, support 1000M RJ45*1 |
| USB-C uplink port*1 | Used to connect to a computer, USB3.0 a plug, Cable 130 mm in length |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps upstream rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax; | |
| USB-A downlink port*3(USB3.0*2,USB2.0*1) | Used to extend connections to USB devices, such as U disk / mouse / keyboard / mobile hard disk. |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps. downstream rate | |
|
Output power 5V/900mA 5V/1.5A(Max，Type C port PD 20VDC ) |
|
| HDMI display port*1 | For connecting the display through the HDMI line, output the display content of the computer |
| Support Rebuilding and Extended Display Features Function | |
| Maximum supported resolution 3840/2160/4K60 Hz, Downward Compatible Resolution | |
| TF Card Reader Slot*1 | Used for external TF memory cards.( Not support read SD / TF Card at the same time、sd2.0) |
| SD Card Reader Slot*1 | sUed for external SD memory cards. ( Not support read SD / TF Card at the same time、sd2.0) |
| Downlink USB –C interface*1 | 20 V/3A max input power for power supply and charging host computer |
| RJ45 interface | Used to connect to the Internet through a network cable. Support 10/100 BASE-TX Auto MDI/MDI-X, transmission rate :100 Mbps |
| LED indicator light*1 | Green LED light , Power on. |
| Product Description | The USB C Docking station, support USB C to HDMI, support USB3.0A*2+USB2.0*1 USB device connect together at the same time, support 1000M RJ45*1 |
| USB-C uplink port*1 | Used to connect to a computer, USB3.0 a plug, Cable 130 mm in length |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps upstream rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax; | |
| USB-A downlink port*3(USB3.0*2,USB2.0*1) | Used to extend connections to USB devices, such as U disk / mouse / keyboard / mobile hard disk. |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps. downstream rate | |
|
Output power 5V/900mA 5V/1.5A(Max，Type C port PD 20VDC ) |
|
| HDMI display port*1 | For connecting the display through the HDMI line, output the display content of the computer |
| Support Rebuilding and Extended Display Features Function | |
| Maximum supported resolution 3840/2160/4K60 Hz, Downward Compatible Resolution | |
| TF Card Reader Slot*1 | Used for external TF memory cards.( Not support read SD / TF Card at the same time、sd2.0) |
| SD Card Reader Slot*1 | sUed for external SD memory cards. ( Not support read SD / TF Card at the same time、sd2.0) |
| Downlink USB –C interface*1 | 20 V/3A max input power for power supply and charging host computer |
| RJ45 interface | Used to connect to the Internet through a network cable. Support 10/100 BASE-TX Auto MDI/MDI-X, transmission rate :100 Mbps |
| LED indicator light*1 | Green LED light , Power on. |
SSD -behuizing
2. Interface -specificaties:
Uplink USB-C 3.0-poort × 1
Downlink USB-A 3.0-poort × 1
USB-A 2.0-poort × 2
HDMI -poort × 1
TF -kaartlezerpoort × 1
SDCard Reader Port × 1
USB - C Poort × 1
RJ45 -poort × 1
Ondersteuningsovereenkomsten : USB Type C, USB PD3.0, HDMI1.4
3. Ondersteuning van de stroomadapter:
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W ： Uitgang ： 20V/3.25a Max, 15V/3A, 12V/2A, 5V/2A
|
Complete machine |
Size: |
100x48x15mm |
|
Weight: |
/ |
|
|
Power consumption. |
1.3W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
5. Certificeringseisen
Voldoen aan de CCC/FCC/CE/CB -veiligheidsnorm.
