typec-uitbreiding dok 8-in-1 hub aluminium legering
Ontvang de meest recente Prijsbetaling Type: | T/T,L/C,D/P,D/A,Paypal |
Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
vervoer: | Ocean,Land,Express,Air |
betaling Type: | T/T,L/C,D/P,D/A,Paypal |
Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
vervoer: | Ocean,Land,Express,Air |
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
Verkoopeenheden | : | Piece/Pieces |
Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
De USB TYP-C-connector in deze technische specificatie kan de inhoud van het computerweergave uitvoeren via de HDMI-interface op het notitieboekje met de Type-C-interface en kan het notebook of de mobiele telefoon opladen met de Type-C via de Type-C-interface. Tegelijkertijd kan de notebook met Type-C-interface veranderen in USB3.0A*2 +USB2.0*1 +SD/TF-kaartlezer*1, of 1000m RJ45, ook. Thunderbolt Docking Station
Docking station

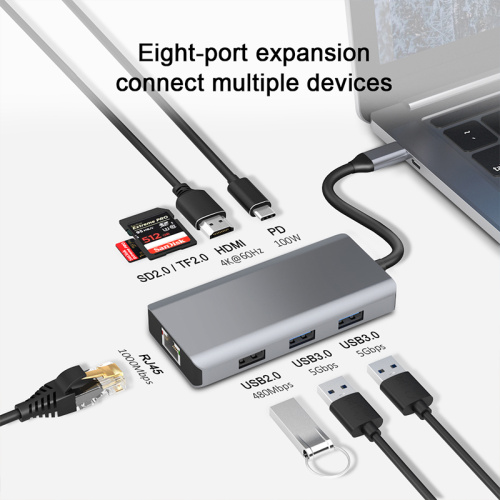

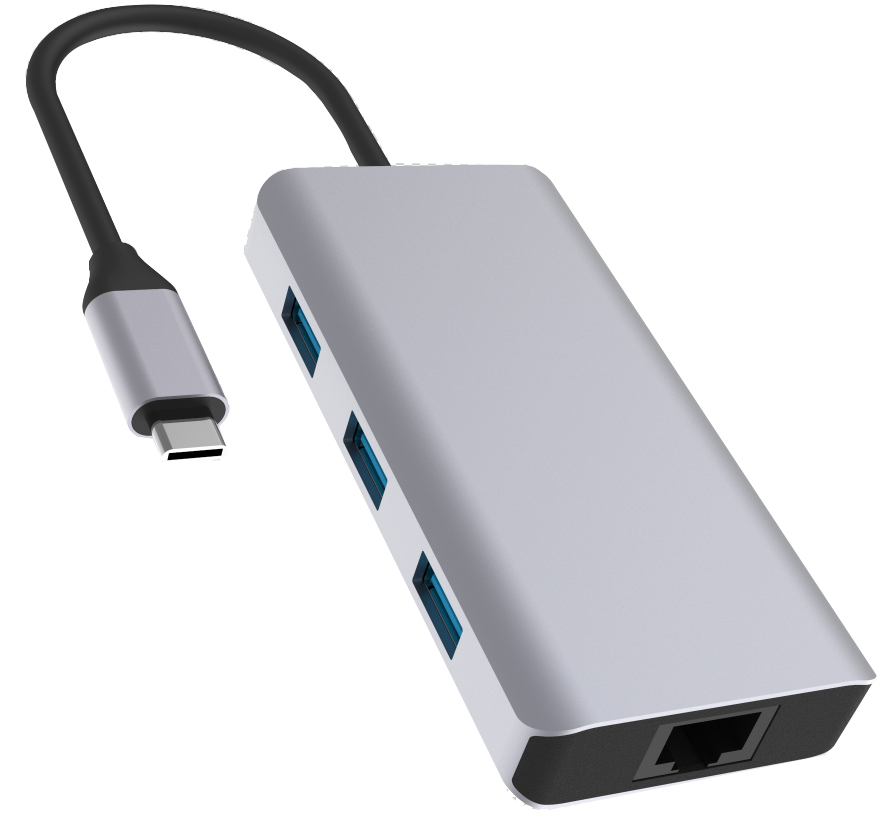

Product Description | The USB C Docking station, support USB C to HDMI, support USB3.0A*2+USB2.0*1 USB device connect together at the same time,support SD/TF Card Reader function, support 1000M RJ45*1 |
USB-C uplink port*1 | Used to connect to a computer, USB3.0 a plug, Cable 161 mm in length |
Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps upstream rate. | |
When host computer supplying the power,output power is 5V/1.5AMax;When PD charging,output power is 20V/2.75A (5A max) | |
USB-A downlink port*3(USB3.0*2,USB2.0*1) | Used to extend connections to USB devices, such as U disk / mouse / keyboard / mobile hard disk. |
Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps. downstream rate | |
Output power
5V/900mA
5V/1.5A(Max,Type C port PD 20VDC )
|
|
HDMI display port*1 | For connecting the display through the HDMI line, output the display content of the computer |
Support Rebuilding and Extended Display Features Function | |
Maximum supported resolution 3840/2160/4K60 Hz, Downward Compatible Resolution | |
TF Card Reader Slot*1 | Used for external TF memory cards.( Not support read SD / TF Card at the same time、sd2.0) |
SD Card Reader Slot*1 | sUed for external SD memory cards. ( Not support read SD / TF Card at the same time、sd2.0) |
RJ45 interface | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps |
LED indicator light*1 | Green LED light , Power on. |
USB -hubs
2. Interface -specificaties:
Uplink USB-C 3.0-poort × 1
Downlink USB-A 3.0-poort × 2
USB-A 2.0-poort × 1
HDMI -poort × 1
TF -kaartlezerpoort × 1
SDCard Reader Port × 1
USB - C Poort × 1
RJ45 -poort × 1
Ondersteuningsovereenkomsten : USB Type C, USB PD3.0, HDMI2.0
3. Ondersteuning van de stroomadapter:
29W : Uitgang : 14.5V/2A (PD) 5.2V/2.4A
45W : Uitgang: 15V/3A, 12V/3A, 5V/2A
65W/100W : Uitgang : 20V/3.25a (5a max), 15V/3A, 12V/2A, 5V/2A
Complete machine |
Size: |
100x48x15mm |
Weight: |
/ |
|
Power consumption. |
1.3W |
|
Working temperature |
0°C~ +40°C, |
|
Surface temperature |
Working:≤50C |
5. Certificeringseisen
Voldoen aan de CCC/FCC/CE/CB -veiligheidsnorm.
