| betaling Type: | T/T,L/C,D/P,D/A,Paypal |
| Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
| vervoer: | Ocean,Land,Express,Air |
Schaduw:
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-Alt-notebook door middel van dubbele HDMI-interface-uitvoer Computer Display-inhoud, Maximale resolutie ondersteund: dubbele HDMI 4K/60Hz, neerwaartse compatibele resolutie; VGA Display Port Max resolutie 1080p; Ondersteuning 2HDMI MST Samen display+VGA (Max Resolution 1080p). U kunt uw laptop of mobiele telefoon opladen per Type-C-poort. En implementeer ook een notebook met Type-C-interface naar USB3.0AX2 + USB2.0X2 + SD/TF-lezer X1 Ondertussen realiseer het Notebook Type-C-interface naar RJ45, USB-interface naar 3,5 mm AudiothunderBolt Docking Station
Docking station

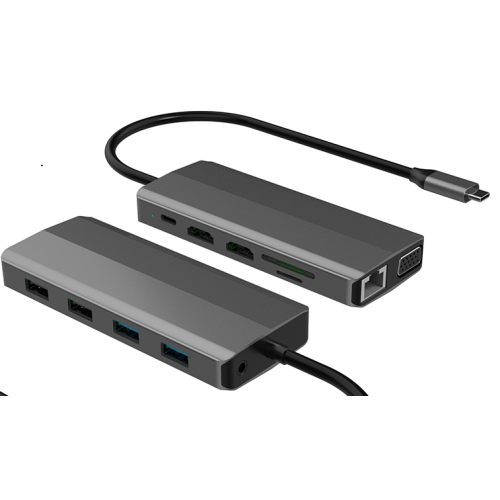

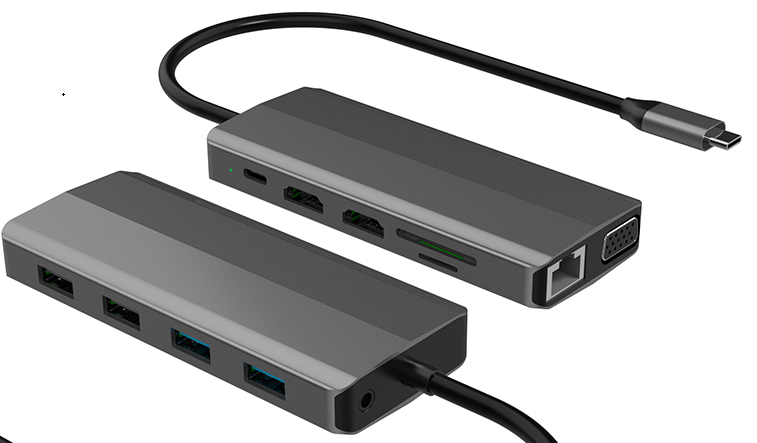

| Product Description | This is a USB C dock, support USB C to HDMI&VGA,support 2 USB3.0A devices and 2 USB2.0 devices connect together at the same time, support SD/TF reader. meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support USB interface to 3.5mm Audio |
| USB-C uplink port x1 | Used to connect to a computer, USB3.0 plug, 130 mm cable |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A max | |
| USB3.0-A downlink port x2 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.。 | |
|
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
|
|
| USB2.0-A downlink port x2 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
| Support USB2.0 and down compatible USB1.1 (480Mbps Max transfer rate) | |
|
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
|
|
| HDMI Port x 2 | For connecting the display by the HDMI cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution 3840X2160/60 HZ, Downward Compatible Resolution(2 HDMI & VGA max resolution: 1080P, HDMI max resolution 3840*2160/60HZ),Support MST,(4 pictures, double HDMI+ VGA display different picture. 1 computer picture. Mac OS not support MST ,Windows OS can change the display by Win+P) | |
| VGA Port x 1 | For connecting the display by the VGA cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution:1080P | |
| TF card reader x 1 | For external TF memory card. USB2.0 card reader, support SD2.0 specification |
| SD card reader x 1 | For external SD memory card. USB2.0 card reader, support SD2.0 specification (SD/TF card does not support simultaneous use) |
| RJ45 x 1 | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps |
| Audio x 1 | 3.5mm stereo audio output and MIC input interface, American Standard (CTIA) |
| Downlink USB C interface x 1 | Support 20 V/3A(Max 5A) max input power supply and charging host computer |
| LED indicator light x 1 | Green light Power on |
2. Interface -specificaties: USB -hubs
Uplink USB-C 3.0-plug × 1
Downlink USB-A 3.0-poort × 2
USB-A 2.0-poort × 2
HDMI -poort × 2
VGA -poort × 1
TF -kaartlezer x 1
SD -kaartlezer x 1
RJ45 × 1
Audio × 1
USB C C -poort × 1
3. Power -adapterondersteuning
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W/100W ： Uitgang ： 20V/3.25a (5a max), 15V/3A, 12V/2A, 5V/2A
4. Productspecificatie
|
Complete machine |
Overall Product Size |
116*48*16.5mm |
|
Weight |
/ |
|
|
Power consumption |
1.3W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
Maak kennis met de CCC/FCC/CE/CB -veiligheidstest Standaard over USB C Docking Station
