| betaling Type: | T/T,L/C,D/P,D/A,Paypal |
| Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
| vervoer: | Ocean,Land,Express,Air |
Schaduw:
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
De USB Type-C-connector in deze technische specificatie kan de inhoud van het computerweergave uitvoeren via de HDMI-interface op de notebook met de Type-C-interface en kan het notebook of de mobiele telefoon met de Type-C via de Type-C-interface opladen. Tegelijkertijd kan het notitieboekje met Type-C-interface veranderen in USB3.0A*1 +USB2.0*2, of 100m RJ45, ook.

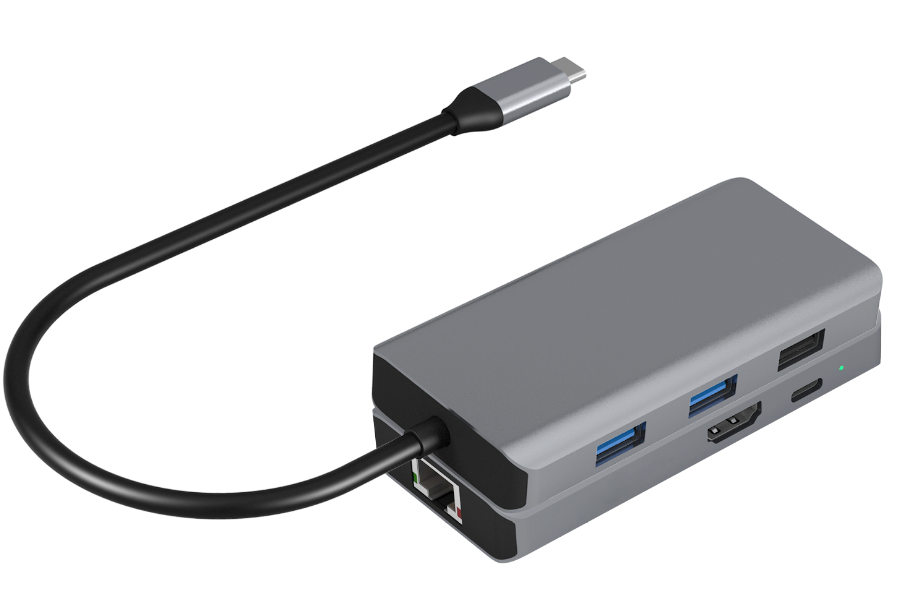

Thunderbolt Docking Station
Docking station
| Product Description | The USB C Docking station, support USB C to HDMI, support USB3.0A*2+USB2.0*1 USB device connect together at the same time,support SD/TF Card Reader function, support 1000M RJ45*1also support external PD charger to charge the host computer. |
| USB-C uplink port*1 | Used to connect to a computer, USB3.0 a plug, Cable 130 mm in length |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps upstream rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A | |
| USB-A downlink port*3(USB3.0*1,USB2.0*2) | Used to extend connections to USB devices, such as U disk / mouse / keyboard / mobile hard disk. |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5 Gbps. downstream rate | |
|
Output power
5V/900mA
5V/1.5A(Max，Type C port PD 20VDC )
|
|
| HDMI display port*1 | For connecting the display through the HDMI line, output the display content of the computer |
| Support Rebuilding and Extended Display Features Function | |
| Maximum supported resolution 3840/2160/30 HZ, Downward Compatible Resolution | |
| Downlink USB –C interface*1 | 20 V/3A max input power for power supply and charging host computer |
| RJ45 interface | Used to connect to the Internet through a network cable. Support 10/100 BASE-TX Auto MDI/MDI-X, transmission rate :100 Mbps |
| LED indicator light*1 | Green LED light , Power on. |

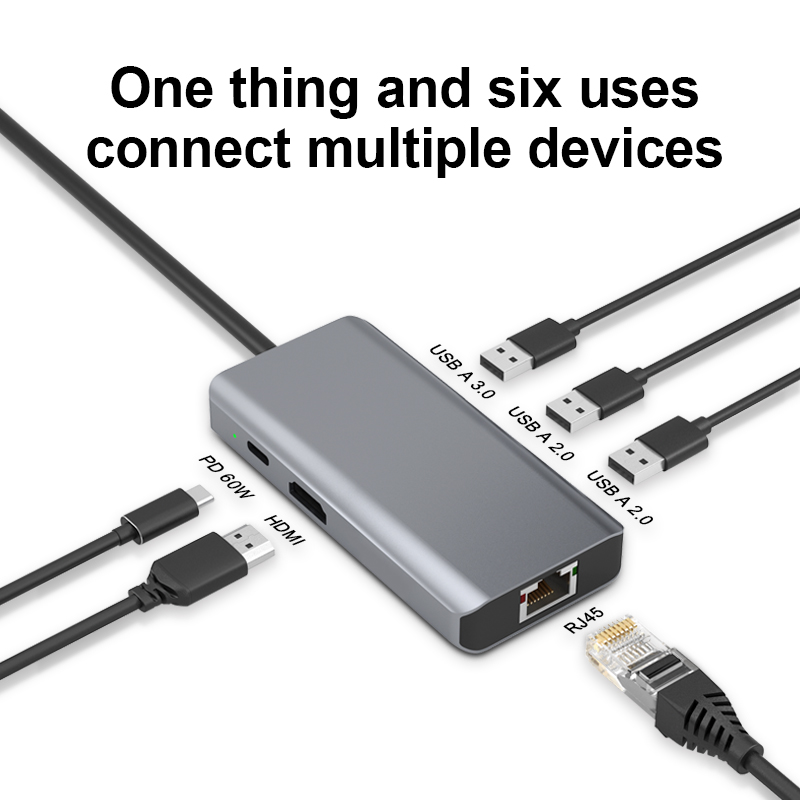

2. Interface -specificaties:
Uplink USB-C 3.0-poort × 1
Downlink USB-A 3.0-poort × 1
USB-A 2.0-poort × 2
HDMI -poort × 1
USB - C Poort × 1
RJ45 -poort × 1
Ondersteuningsovereenkomsten : USB Type C, USB PD3.0, HDMI1.4
SSD -behuizing
3. Ondersteuning van de stroomadapter:
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W ： Uitgang ： 20V/3.25a Max, 15V/3A, 12V/2A, 5V/2A
Thunderbolt Docking Station
|
Complete machine |
Size: |
100x48x15mm |
|
Weight: |
/ |
|
|
Power consumption. |
1.3W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
5. Certificeringseisen
Voldoen aan de CCC/FCC/CE/CB -veiligheidsnorm.
