| betaling Type: | T/T,L/C,D/P,D/A,Paypal |
| Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
| vervoer: | Ocean,Land,Express,Air |
Schaduw:
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-Alt-notitieboek via de HDMI-interface-uitvoer Computer Display-inhoud, Maximale resolutie ondersteund: HDMI 3840*2160/30Hz, neerwaartse compatibele resolutie; Ondersteuning HDMI en VGA -weergave samen (Max Resolution 1080p). U kunt uw laptop of mobiele telefoon opladen per Type-C-poort en het notitieboekje met Type-C naar USB3.0A.Docking Station opladen
HDD -behuizing

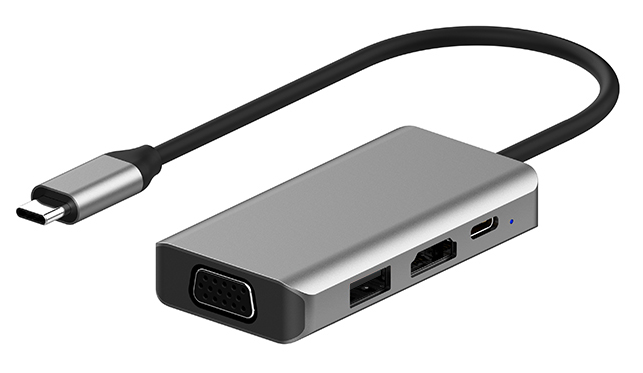

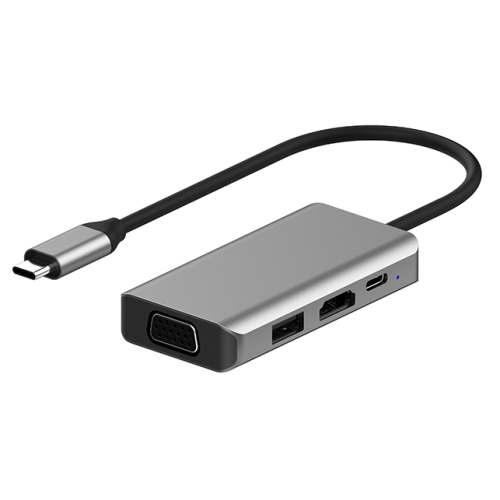

| Product Description | This is a USB C docking station, supports USB C to HDMI&VGA, supports 1 USB3.0 A device connected at the same time; at the same time, it can charge the host computer through an external PD charger. |
| USB-C uplink port x1 | Used to connect to a computer, USB3.1 plug, 130 mm cable |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A max | |
| USB3.0-A downlink port x1 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
|
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
|
|
| HDMIX1 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
| Support USB3.0 and down compatible USB1.1 (480Mbps Max transfer rate) | |
| Maximum support resolution 3840*2160/30HZ, downward compatible resolution | |
| VGA | For connecting the display by the VGA cable, output the display content of the computer |
| Maximum supported resolution 1080P，downward compatible resolution | |
| Downlink USB C interface x 1 | Support 20 V/3A (5A Max) input power supply and charging host computer |
| LED indicator light x 1 | Green, The corresponding indicator light is always on after the host computer does not reach the USB device |
2. Interface -specificaties:
Uplink USB-C 3.0-plug × 1
Downlink USB-A 3.0-poort × 1
HDMI -interface × 1
VGA -interface × 1
USB - C interface × 1
Ondersteunende overeenkomst : USB Type C, USB PD3.0, HDMI2.0
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang : 15V/3A , 12V/3A , 5V/2A
65W \ 100W ： Uitgang ： 20V/3.25a (5a max) , 15V/3A , 12V/2A , 5V/2A
4. Productspecificatie
|
Complete machine |
Overall Product Size |
78*41*14MM |
|
Weight |
/ |
|
|
Power consumption |
1.1W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
M EET De CCC/FCC/CE/CB Veiligheidstest Standaard over USB C Docking Station
