| betaling Type: | T/T,L/C,D/P,D/A,Paypal |
| Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
| vervoer: | Ocean,Land,Express,Air |
Schaduw:
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
SSD -behuizing

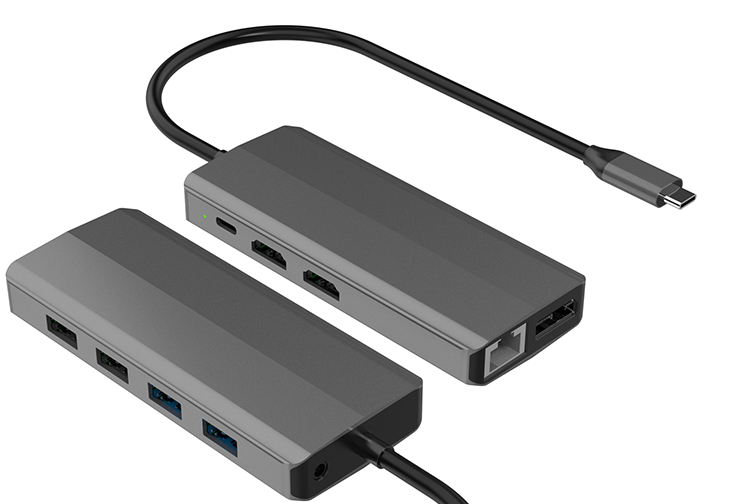

| Product Description | This is a USB C dock, support USB C to HDMI&DP,support 3 USB3.0A devices and 1 USB2.0 devices connect together at the same time, meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support USB interface to 3.5mm Audio |
| USB-C uplink port x1 | Used to connect to a computer, USB3.0 plug, 130 mm cable |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A max | |
| USB3.0-A downlink port x3 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
| Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.。 | |
|
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
|
|
| USB2.0-A downlink port x1 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
| Support USB2.0 and down compatible USB1.1 (480Mbps Max transfer rate) | |
|
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
|
|
| HDMI Port x 2 | For connecting the display by the HDMI cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution 3840X2160/60 HZ, Downward Compatible Resolution(2 HDMI & DP max resolution: 1080P, HDMI max resolution 3840*2160/60HZ),Support MST,(4 pictures, double HDMI+ DP display different picture. 1 computer picture. Mac OS not support MST ,Windows OS can change the display by Win+P) | |
| DP Port x 1 | For connecting the display by the DP cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution:8K/60Hz | |
| RJ45 x 1 | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps |
| Audio x 1 | 3.5mm stereo audio output and MIC input interface, American Standard (CTIA) |
| Downlink USB C interface x 1 | Support 20 V/3.25A(Max 5A) max input power supply and charging host computer |
| LED indicator light x 1 | Green light Power on |

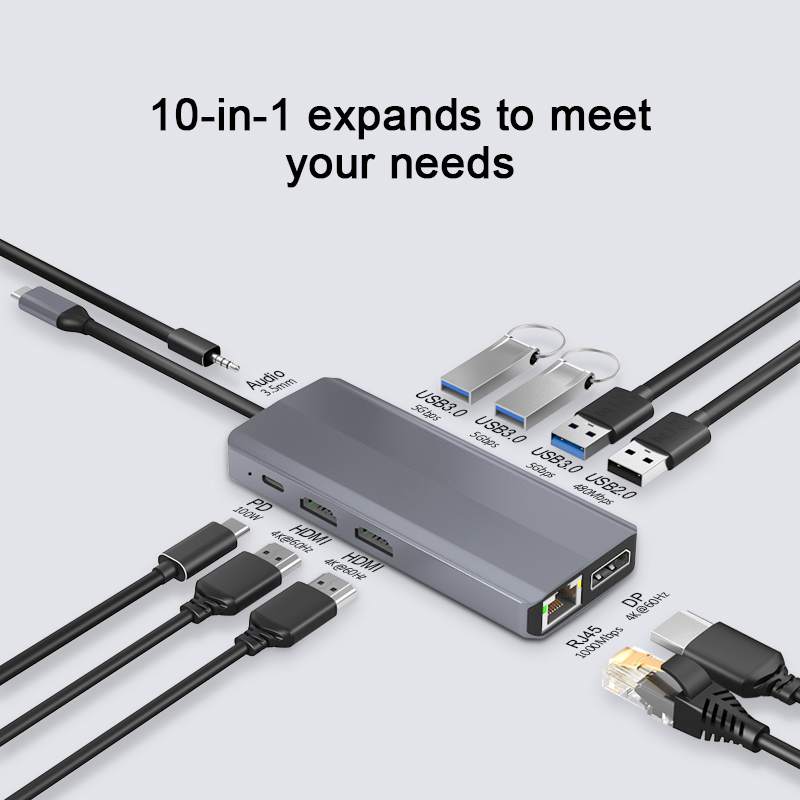

2. Interface -specificaties: HDD -behuizing
Uplink USB-C 3.0-plug × 1
Downlink USB-A 3.0-poort × 3
USB-A 2.0-poort × 1
HDMI -poort × 2
DP -poort × 1
RJ45 × 1
Audio × 1
USB C C -poort × 1
3. Power -adapterondersteuning
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W/100W ： Uitgang ： 20V/3.25a (5a max), 15V/3A, 12V/2A, 5V/2A
4. Productspecificatie
|
Complete machine |
Overall Product Size |
116*48*16.5 |
|
Weight |
/ |
|
|
Power consumption |
1.3W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
Maak kennis met de CCC/FCC/CE/CB -veiligheidstest Standaard over USB C Docking Station
