Multi-interface expansie Dock USB3.0hub
Ontvang de meest recente Prijsbetaling Type: | L/C,T/T,D/P,D/A,Paypal |
Incoterm: | FOB,DDU,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP |
vervoer: | Ocean,Land,Air,Express |
betaling Type: | L/C,T/T,D/P,D/A,Paypal |
Incoterm: | FOB,DDU,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP |
vervoer: | Ocean,Land,Air,Express |
merk: Guanchen
Certificatie: FCC, Sgs, ce, RoHS
Product Status: Voorraad
Shell Materiaal: Aluminium
Externe Interface: USB
Plaats Van Herkomst: China
Naam van product: Mobile Solid State Drive
Material: Aluminum Alloy
Color: Silver Grey
Logo: Customized
Transmission Speed: USB3.1 10Gbps
Scheme: ASM225
Capacity: 2TB MAX
Supported System: Windows /Mac
Verkoopeenheden | : | Piece/Pieces |
Pakkettype | : | Neutrale verpakking |
Afbeeldingsvoorbeeld | : |
The file is encrypted. Please fill in the following information to continue accessing it

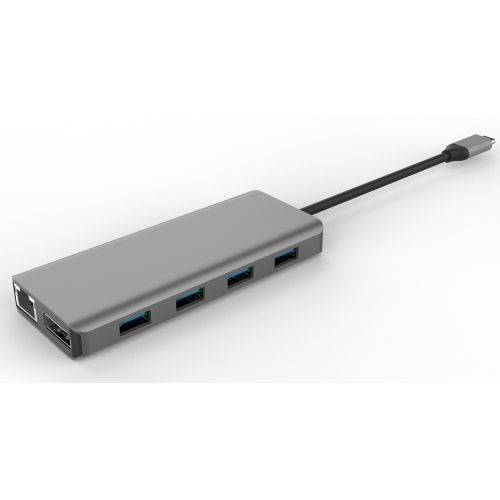

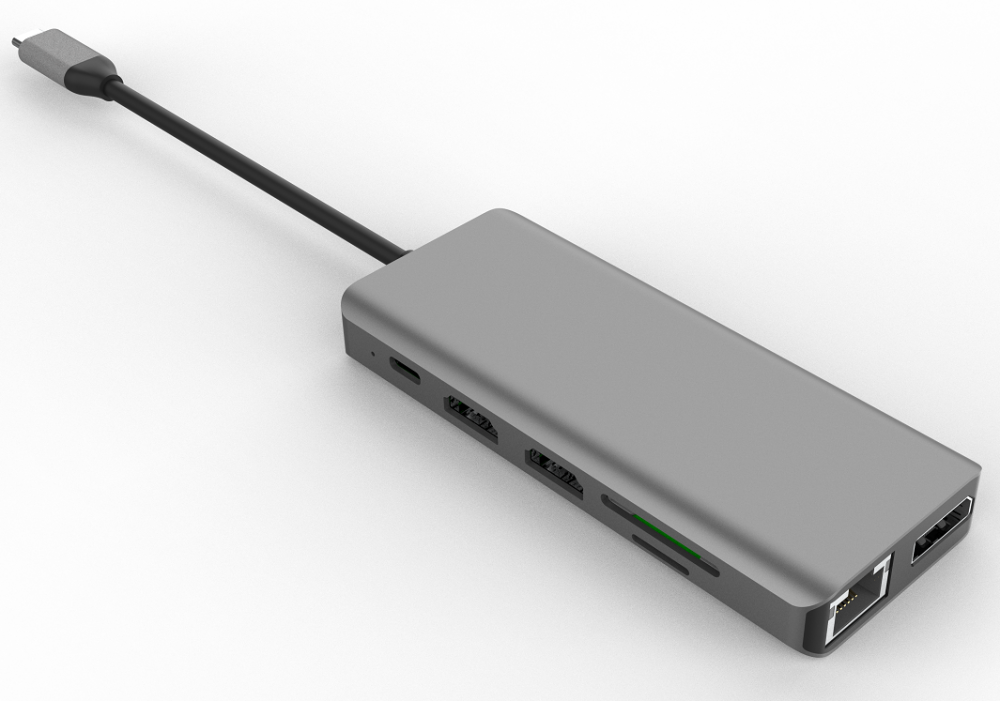

1. Productbeschrijving USB Hubs Docking Station USB -adapter
Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-ALT-notebook via de HDMI-interface-uitvoercomputerinhoud, maximale resolutie ondersteund: HDMI 4K/60Hz, neerwaartse compatibele resolutie; Ondersteuning HDMI en DP MST -weergave samen (Max Resolution 1080p). U kunt uw laptop of mobiele telefoon opladen per Type-C-poort. En implementeer ook een notebook met Type-C-interface naar USB3.0AX2+USB2.0X2 en SD/TF-kaartlezer, realiseer ondertussen een notebook-Type-C-interface naar RJ45, ondersteun Type-C-interface naar 3,5 mm Audiossd-behuizing
Docking station
Product Description | This is a USB C dock, support USB C to HDMI&DP,support 2 USB3.0A devices and 2 USB2.0 devices connect together at the same time,support SD/TF Reader function, meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support Type-C interface to 3.5mm Audio |
USB-C uplink port*1 | Used to connect to a computer, USB3.1 plug, 130 mm cable |
Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate. | |
When host computer supplying the power,output power is 5V/1.5AMax;When PD charging,output power is 20V/2.75A max | |
USB3.0-A downlink port x2 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.。 | |
Output Power5V/900mA5V/1.5A Max( Type C interface PD 20V power supply) | |
USB2.0-A downlink port x2 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk |
Support USB3.0 and down compatible USB1.1 (480Mbps Max transfer rate) | |
Output Power5V/900mA5V/1.5A Max( Type C interface PD 20V power supply) | |
DP interface x 1 | For connecting the display by the DP cable, output the display content of the computer |
Support rebuilding and extended display features function | |
Maximum supported resolution 4K/60Hz | |
TF Reader x 1 | Used for external TF memory cards. USB 2.0 card reader,support SD2.0 |
SD Reader x 1 | Used for external SD memory cards, USB2.0 reader,support SD2.0 standard ( SD/TF card can use at the same time) |
RJ45 x 1 | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps |
Audio x 1 | 3.5mm stereo audio output and MIC input interface, American Standard (CTIA) |
Downlink USB C interface x 1 | Support 20 V/3A (5A Max) input power supply and charging host computer |
LED indicator light x 1 | Green light Power on |
2 . Productspecificatie
Complete machine |
Overall Product Size |
116*48*15 |
Weight |
/ |
|
Power consumption |
1.3W |
|
Working temperature |
0°C~ +40°C, |
|
Surface temperature |
Working:≤50C |
3. Interface -specificaties:
Uplink USB-C 3.0-plug × 1
Downlink USB-A 3.0-poort × 2
USB-A 2.0-poort × 2
HDMI -interface × 2
DP -interface × 1
RJ45 -interface × 1
TF -lezer × 1
SD -lezer × 1
Audio*1
USB C C -poort × 1
