Schaduw:
merk: Guanchen
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-ALT-notebook via de HDMI-interface-uitvoercomputerinhoud, maximale resolutie ondersteund: HDMI 4K/60Hz, neerwaartse compatibele resolutie; U kunt uw laptop of mobiele telefoon opladen per Type-C-poort. En implementeer ook een notebook met Type-C-interface naar USB3.1AX3- en SD/TF-kaartlezer, realiseer ondertussen een notebook-Type-C-interface naar RJ45, ondersteunt Type-C-interface naar 3,5 mm audio, ingebouwde M-sleutel SSD High- Snelheidsopslag van massieve data.usb -adapter
SSD -behuizing

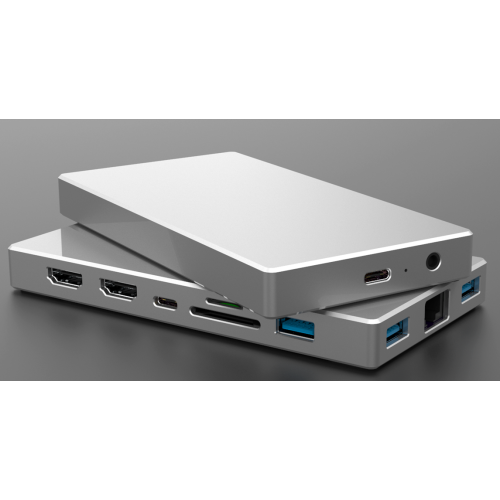

| Product Description | This is a USB C dock, support USB C to HDMI,support 3 USB3.1A devices connect together at the same time,support SD/TF Reader function, meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support Type-C interface to 3.5mm Audio,supports built-in M KEY SSD (2TB)high-speed storage of massive data. |
| USB-C uplink port*1 | Used to connect to a computer, USB3.1 standard cable, Cable 300 mm in length |
| Support USB3.1 and down compatible USB3.0/2.0/1.1, up to 10Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A max | |
| USB3.1-A downlink port*3 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk. |
| Support USB3.1 and down compatible USB3.0/2.0/1.1, up to 10Gbps transfer rate. | |
|
Output Power
5V/900mA
5V/1.5A Max，Type C interface PD 20V power supply)
|
|
| HDMI*2 | For connecting the display by the HDMI cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution 3840/2160/60 HZ, Downward Compatible Resolution ,Support MST function (3 display pictures, 2 HDMI different pictures and 1 computer picture; note: Apple computer does not have MST function, WINDOWS system can be changed by WIN key+P ) | |
| HDMI Port x 2 | For connecting the display by the HDMI cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution 3840X2160/60 HZ, Downward Compatible Resolution(2 HDMI & VGA max resolution: 1080P, HDMI max resolution 3840*2160/60HZ),Support MST,(4 pictures, double HDMI+ VGA display different picture. 1 computer picture. Mac OS not support MST ,Windows OS can change the display by Win+P) | |
| TF reader *1 | Used for external TF memory cards. USB 3.0 card reader,support SD3.0 |
| SD reader slot x 1 | Used for external SD memory cards, USB3.0 reader,support SD3.0 standard ( SD/TF card can use at the same time) |
| RJ45 interface x 1 | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps |
| 3.5mm Audio x 1 | 3.5mm stereo audio output and MIC input interface, American Standard (CTIA) |
| Downlink USB C interface x 1 | Used for data transfer,Max transfer speed(10Gbps)20 V/3A (5A Max) input power for power supply and charging host computer |
| LED indicator light x 2 | Power indicator is red,hard disk indicator is blue, Power indicator light is always on ,copy data the indicator is shining. |
2. Interface -specificaties: HDD -behuizing
Uplink USB-C 3.1 (Gen2) Poort × 1
Downlink USB-A 3.1 (Gen2) poort × 3
Audio/MIC -poort × 1
HDMI -poort × 2
RJ45 Netwerkpoort × 1
TF -kaartlezerpoort × 1
SD -kaartlezerpoort × 1
USB C 3.1 (Gen2) Poort × 1
3. Power -adapterondersteuning:
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang: 15V/3A, 12V/3A, 5V/2A
65W \ 100W ： Uitgang ： 20V/3.25a (5a max), 15V/3A, 12V/2A, 5V/2A
4. Productspecificatie
|
Complete machine |
Overall Product Size |
|
|
Weight |
|
|
|
Power consumption |
1.3W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
|
|
Audio control chip |
SSS1530 |
