| betaling Type: | L/C,T/T,D/P,D/A,Paypal |
| Incoterm: | FOB,DDU,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP |
| vervoer: | Ocean,Land,Air,Express |
Schaduw:
merk: Guanchen
Origin: Gua
certificaat: CE/FCC/ROHS
Certificatie: FCC, Sgs, ce, RoHS
Product Status: Voorraad
Shell Materiaal: Aluminium
Externe Interface: USB
Plaats Van Herkomst: China
Naam van product: Mobile Solid State Drive
Material: Aluminum Alloy
Color: Silver Grey
Logo: Customized
Transmission Speed: USB3.1 10Gbps
Scheme: ASM225
Capacity: 2TB MAX
Supported System: Windows /Mac
| Verkoopeenheden | : | Piece/Pieces |
| Pakkettype | : | Neutrale verpakking |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
1. Productbeschrijving
Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-ALT-notebook via de HDMI-interface-uitvoercomputerinhoud, maximale resolutie ondersteund: HDMI 4K/60Hz, neerwaartse compatibele resolutie; U kunt uw laptop of mobiele telefoon opladen per Type-C-poort. En implementeer ook een notebook met Type-C-interface naar USB3.1AX3- en SD/TF-kaartlezer, realiseer ondertussen een notebook-Type-C-interface naar RJ45, ondersteunt Type-C-interface naar 3,5 mm audio, ingebouwde M-sleutel SSD High- snelheidsopslag van enorme gegevens. HDD -behuizing
SSD -behuizing

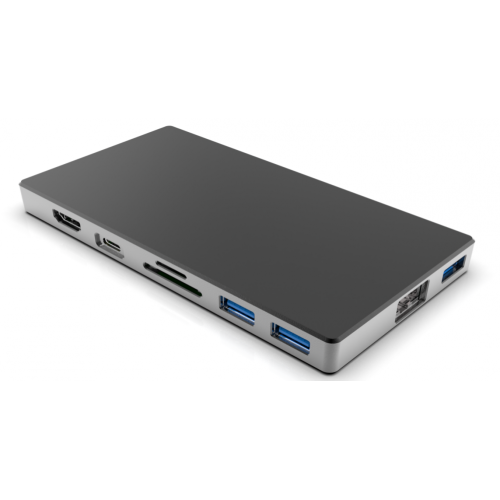

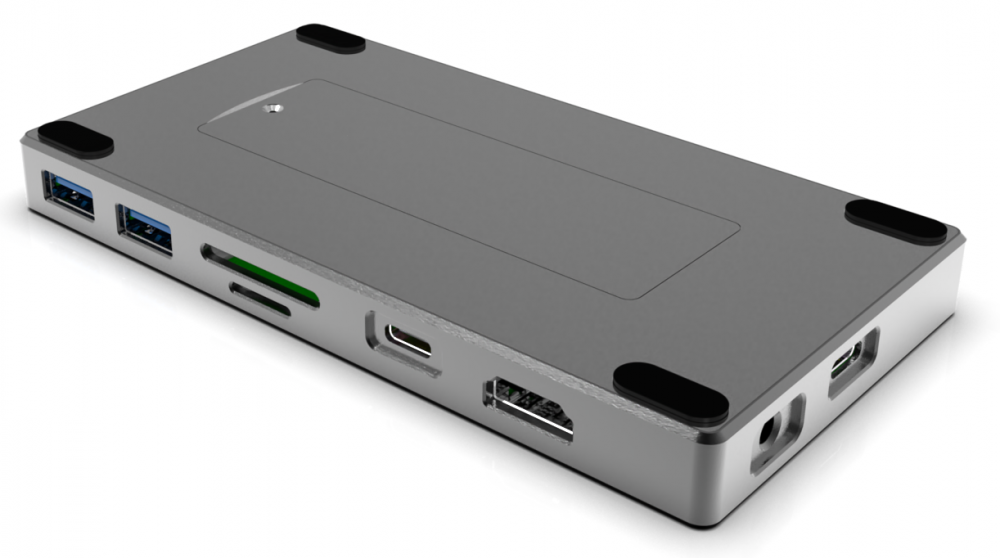

| Product Description | This is a USB C dock, support USB C to HDMI,support 3 USB3.1A devices connect together at the same time,support SD/TF Reader function, meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support Type-C interface to 3.5mm Audio,supports built-in M KEY SSD (2TB)high-speed storage of massive data. |
| USB-C uplink port*1 | Used to connect to a computer, USB3.1 standard cable, Cable 300 mm in length |
| Support USB3.1 and down compatible USB3.0/2.0/1.1, up to 10Gbps transfer rate. | |
| When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A (5A max) | |
| USB3.1-A downlink port*3 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk. |
| Support USB3.1 and down compatible USB3.0/2.0/1.1, up to 10Gbps transfer rate. | |
| Output Power 5V/900mA 5V/1.5A Max( Type C interface PD 20V power supply) | |
| HDMI*1 | For connecting the display by the HDMI cable, output the display content of the computer |
| Support rebuilding and extended display features function | |
| Maximum supported resolution 3840/2160/60 HZ, Downward Compatible Resolution ,Support MST function (two display pictures, HDMI one picture, computer on the other picture; note: Apple computer does not have MST function, WINDOWS system can be changed by WIN key+P ) | |
| TF reader *1 | Used for external TF memory cards. USB 2.0 card reader,support SD2.0 |
| SD reader slot x 1 | Used for external SD memory cards, USB2.0 reader,support SD2.0 standard (SD / TF cards can not read at the same time.) |
| RJ45 interface x 1 | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps |
| 3.5mm Audio x 1 | 3.5mm stereo audio output and MIC input interface, American Standard (CTIA) |
| Downlink USB C interface x 1 | Used for data transfer,Max transfer speed(10Gbps)20 V/3A (5A max) input power for power supply and charging host computer |
| LED indicator light x 1 | Green light，Power on |
USB -adapter
2. Interface -specificaties:
Uplink USB-C 3.1 (Gen2) Poort × 1
Downlink USB-A 3.1 (Gen2) poort × 3
Audio/MIC -poort × 1
HDMI -poort × 1
RJ45 Netwerkpoort × 1
TF -kaartlezerpoort × 1
SD -kaartlezerpoort × 1
USB C 3.1 (Gen2) Poort × 1
29W ： Uitgang ： 14.5V/2A (PD) 5.2V/2.4A
45W ： Uitgang : 15V/3A , 12V/3A , 5V/2A
65W \ 100W ： Uitgang ： 20V/3.25a (5a max) , 15V/3A , 12V/2A , 5V/2A
|
Complete machine |
Overall Product Size |
|
|
Weight |
|
|
|
Power consumption |
1.3W |
|
|
Working temperature |
0°C~ +40°C， |
|
|
Surface temperature |
Working：≤50C |
M EET De CCC/FCC/CE/CB Veiligheidstest Standaard over USB C Docking Station
