3.1 SD HDMI Splitter voor hub -uitbreiding dok
Ontvang de meest recente Prijsbetaling Type: | T/T,L/C,D/P,D/A,Paypal |
Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
vervoer: | Ocean,Land,Express,Air |
betaling Type: | T/T,L/C,D/P,D/A,Paypal |
Incoterm: | CFR,FOB,CIF,EXW,FAS,DDP,DDU,Express Delivery,FCA |
vervoer: | Ocean,Land,Express,Air |
merk: Guanchen
Certificatie: FCC, ce
Soorten: HDMI
Toepassing: Camera, Auto, Projector, Telefoon, COMPUTER, Dvd-speler, Spreker, Voor iPod, HDTV, THUISBIOSCOOP, Multimedia, Monitor, Microfoon
Pakket: OPP ZAK
Connector Kleur: Goud, Zilver
Schakelaartype: HDMI
Product Status: Voorraad
Geleider: Verguld, Vernikkeld
Naam van product: HDMI Cable
HDMI: 4K/8K
Size: Customized
Color: Black
Verkoopeenheden | : | Piece/Pieces |
Pakkettype | : | OPP -tas |
The file is encrypted. Please fill in the following information to continue accessing it
Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-ALT-notebook via de HDMI-interface-uitvoercomputerinhoud, maximale resolutie ondersteund: HDMI 4K/60Hz, neerwaartse compatibele resolutie; U kunt uw laptop of mobiele telefoon opladen per Type-C-poort. En implementeer ook een notebook met Type-C-interface naar USB3.1A x 3, realiseer ondertussen een notebook-type-C-interface naar RJ45, ondersteun Type-C-interface naar 3,5 mm audio, ondersteunt ingebouwde M-sleutel SSD SD-snelheid opslag van Massive Data.Thunderbolt Docking Station
Docking station

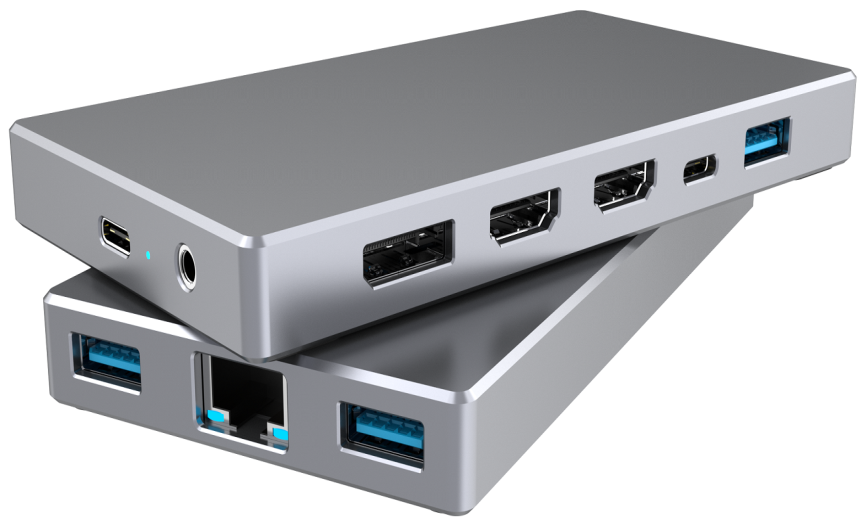

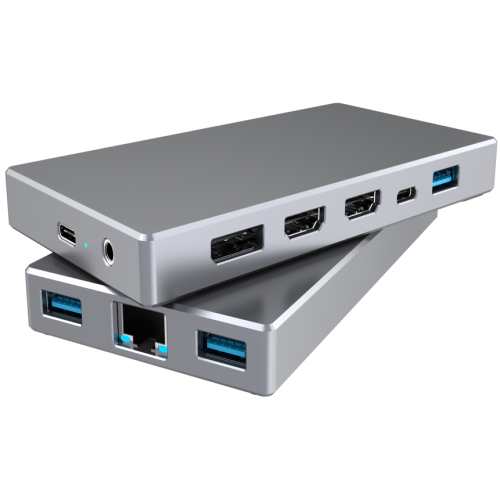

Product Description | This is a USB C dock, support USB C to 2HDMI+DP MST display,support 3 USB3.1A devices connect together at the same time, meanwhile support external PD charger to charge the host computer and support Type-C interface to RJ45,support Type-C interface to 3.5mm Audio,supports built-in M KEY SSD (2TB)high-speed storage of massive data. |
USB-C uplink port*1 | Used to connect to a computer, USB3.1 standard cable, Cable 500 mm in length |
Support USB3.1 and down compatible USB3.0/2.0/1.1, up to 10Gbps transfer rate. | |
When host computer supplying the power,output power is 5V/1.5AMax;When PD charging,output power is 20V/2.75A (5A max) | |
USB3.1-A downlink port*3 | Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk. |
Support USB3.1 and down compatible USB3.0/2.0/1.1, up to 10Gbps transfer rate. | |
Output Power
5V/900mA
5V/1.5A Max,Type C interface PD 20V power supply)
|
|
HDMI*2 | For connecting the display by the HDMI cable, output the display content of the computer |
Support rebuilding and extended display features function | |
Maximum supported resolution 3840/2160/60 HZ, Downward Compatible Resolution ,Support MST function (3 display pictures, 2 HDMI different pictures and 1 computer picture; note: Apple computer does not have MST function, WINDOWS system can be changed by WIN key+P ) | |
DP *1 |
For connecting the display by the DP cable, output the display content of the computer
Support rebuilding and extended display features function,
Supported maximum resolution:4K/60Hz
|
RJ45 interface x 1 | Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000Mbps |
3.5mm Audio x 1 | 3.5mm stereo audio output and MIC input interface, American Standard (CTIA) |
Downlink USB C interface x 1 | Used for data transfer,Max data transfer speed(10Gbps)20 V/3A (5A max) input power for power supply and charging host computer |
LED indicator light x 2 | Power indicator is red,hard disk indicator is blue, Power indicator light is always on ,copy data the indicator is shining. |
2. Interface -specificaties: USB -hubs
Uplink USB-C 3.1 (Gen2) Poort × 1
Downlink USB-A 3.1 (Gen2) poort × 3
Audio/MIC -poort × 1
HDMI -poort × 2
RJ45 Netwerkpoort × 1
DP -poort × 1
USB C 3.1 (Gen2) Poort × 1
3. Power -adapterondersteuning:
29W : Uitgang : 14.5V/2A (PD) 5.2V/2.4A
45W : Uitgang: 15V/3A, 12V/3A, 5V/2A
65W/100W : Uitgang : 20V/3,25a (5a max), 15V/3A, 12V/2A, 5V/2A
4. Productspecificatie
Complete machine |
Overall Product Size |
138.5*73*15.2mm |
Weight |
|
|
Power consumption |
1.3W |
|
Working temperature |
0°C~ +40°C, |
|
Surface temperature |
Working:≤50C |
