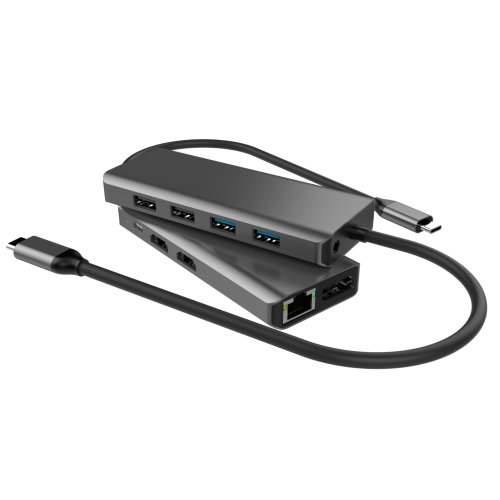

Multi-Interface Portable Extension Dock
Multi-Interface Portable Extension Dock
Multi-Interface Portable Extension Dock

Multi-Interface Portable Extension Dock

Ontvang de meest recente Prijs
betaling Type:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,DDU,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP
vervoer:Ocean,Land,Air,Express
Color:
Productkenmerken

merkGuanchen

CertificatieFCC, Sgs, ce, RoHS

Product StatusVoorraad

Shell MateriaalAluminium

Externe InterfaceUSB

Plaats Van HerkomstChina

Naam van productMobile Solid State Drive

MaterialAluminum Alloy

ColorSilver Grey

LogoCustomized

Transmission SpeedUSB3.1 10Gbps

SchemeASM225

Capacity2TB MAX

Supported SystemWindows /Mac

Verpakking & Levering
Verkoopeenheden : Piece/Pieces
Pakkettype : Neutrale verpakking
Afbeeldingsvoorbeeld :

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

1. Productbeschrijving

Type-C-connectoren beschreven in deze technische specificatie, kunnen worden geïmplementeerd in de Type-C-interface, ondersteunen het DP-Alt-notebook via HDMI 、 DP-interface-uitvoer Computer Display-inhoud, Maximale resolutie ondersteund: dubbele HDMI 4K/60Hz, neerwaartse compatibele resolutie; DP Max resolutie 4K/60Hz; Ondersteuning 2HDMI & DP MST -weergave samen (Max Resolution 1080p). U kunt uw laptop of mobiele telefoon opladen per Type-C-poort. En implementeer ook een notebook met Type-C-interface naar USB3.0AX3+USB2.0X1 Ondertussen realiseer het Notebook Type-C-interface naar RJ45, ondersteunt USB-interface naar 3,5 mm Audiodocking Station

Thunderbolt Docking Station

Dual-protocol disk box

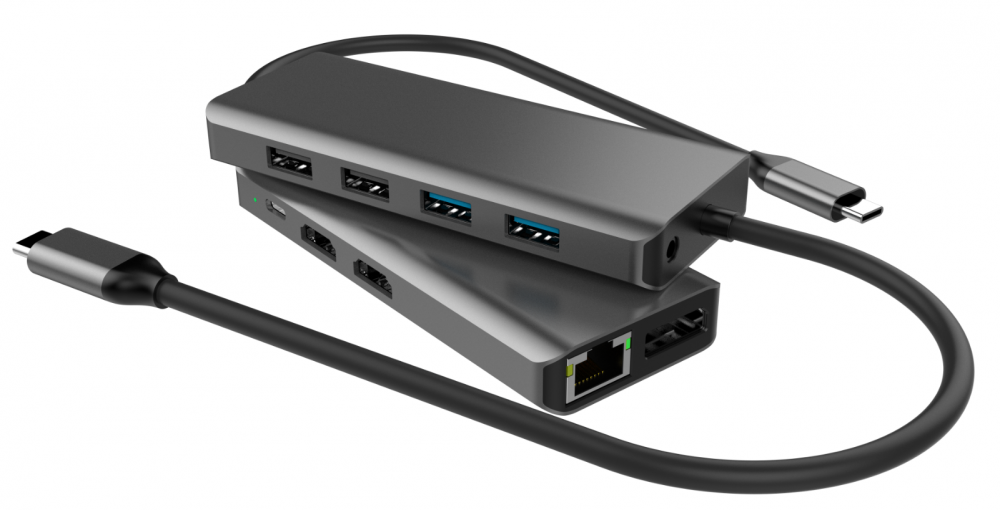

Product Description This is a USB C dock, support USB C to HDMI&DP,support 3 USB3.0A devices and 1 USB2.0 devices connect together at the same time, meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support USB interface to 3.5mm Audio
USB-C uplink port x1 Used to connect to a computer, USB3.0 plug, 130 mm cable
Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.
When host computer supplying the power,output power is 5V/1.5AMax;When PD charging,output power is 20V/2.75A max
USB3.0-A downlink port x3 Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk
Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
USB2.0-A downlink port x1 Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk
Support USB2.0 and down compatible USB1.1 (480Mbps Max transfer rate)
Output Power
5V/900mA
5V/1.5A Max( Type C interface PD 20V power supply)
HDMI Port x 2 For connecting the display by the HDMI cable, output the display content of the computer
Support rebuilding and extended display features function
Maximum supported resolution 3840X2160/60 HZ, Downward Compatible Resolution(2 HDMI & DP max resolution: 1080P, HDMI max resolution 3840*2160/60HZ),Support MST,(4 pictures, double HDMI+ DP display different picture. 1 computer picture. Mac OS not support MST ,Windows OS can change the display by Win+P)
DP Port x 1 For connecting the display by the DP cable, output the display content of the computer
Support rebuilding and extended display features function
Maximum supported resolution:4K/60Hz
RJ45 x 1 Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps
Audio x 1 3.5mm stereo audio output and MIC input interface, American Standard (CTIA)
Downlink USB C interface x 1 Support 20 V/3A(Max 5A) max input power supply and charging host computer
LED indicator light x 1 Green light Power on

USB -hubs

2. Interface -specificaties:

Uplink USB-C 3.0-plug × 1

Downlink USB-A 3.0-poort × 3

USB-A 2.0-poort × 1

HDMI -poort × 2

DP -poort × 1

RJ45 × 1

Audio × 1

USB C C -poort × 1

3. Ondersteuning van de stroomadapter

29W Uitgang 14.5V/2A (PD) 5.2V/2.4A

45W Uitgang : 15V/3A , 12V/3A , 5V/2A

65W/100W Uitgang 20V/3.25a (5a max), 15V/3A , 12V/2A , 5V/2A

4. Productspecificatie

Complete machine

Overall Product Size

116*48*15

Weight

/

Power consumption

1.3W

Working temperature

0°C~ +40°C,

Surface temperature

Working:≤50C

5. Certificeringseisen

M EET De CCC/FCC/CE/CB Veiligheidstest Standaard over USB C Docking Station
